Your are here: Home >> Products >>Tilting Cooking Pot
Tilting cooking pot has been the indispensable equipment in pastry, dairy products, beverage and pharmaceutical etc.It is the ideal equipment in food processing to improve quality, shorten the time and improve working conditions.
Directory
- Classification of Cooking Pot
- Structure of Tilting Cooking Pot
- Usages of Tilting Cooking Pot
- Characteristics of Tilting Cooking Pot
- Technical Parameters of Cooking Pot
- Tilting Cooking Pot Finished Picture
Classification of Cooking Pot
1, according to structure form, it can be divided into tilting cooking pot, and vertical (fixed) cooking pot.
2, according to heating mode, it can be divided into electric heating cooking pot, steam heating cooking pot and gas heating cooking pot
3, according to the process need, it can adopt stirring equipment and equipment without stirring.

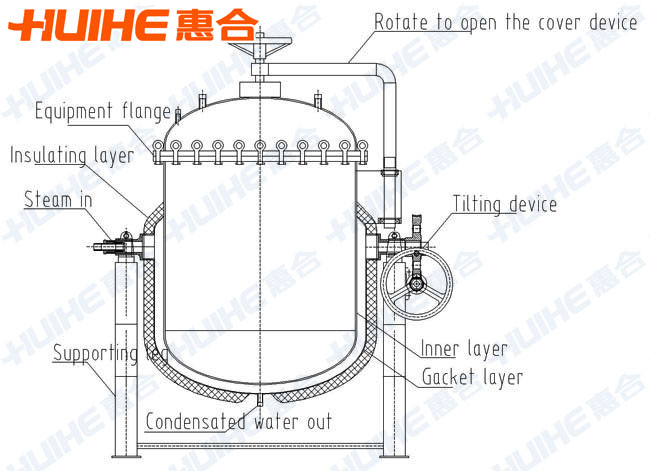

Structure of Tilting Cooking Pot
Usages of Tilting Cooking Pot
Cooking pot is widely used in candy, pharmaceutical, dairy products, alcohol, pastry, candied fruit, beverage, canned foods, and other food processing, also can be used for large restaurant or dining room to boil soup, cook, stew, congee and so on.
Characteristics of Tilting Cooking Pot
Tilting cooking pot takes a certain pressure steam as heat source (also can choose electrical heating). It is a kind of stainless steel tank and owns characteristics such as large heating area, high thermal efficiency, uniform heating, short liquid material boiling time and easy to control the heating temperature.
Technical Parameters of Cooking Pot
|
Volume |
50 |
100 |
200 |
300 |
400 |
500 |
600 |
800 |
1000 | |
|
Stirring power（Kw） |
0.55 |
0.55 |
0.75 |
1.1 |
1.1 |
1.5 |
1.5 |
2.2 |
2.2 | |
|
Thermal power （Kw） |
9 |
9 |
15 |
18 |
18 |
24 |
24 |
27 |
30 | |
|
Interface size |
Steam tube |
3/4” |
1” |
2” | ||||||
|
Condensate tube |
3/4” |
1” | ||||||||
|
Jacket working pressure |
≤0.09Mpa（can be adjust ） | |||||||||
|
Stirring speed |
36 r/min（can be adjust ） | |||||||||
Notes:
1. The technical parameters of cooking pot are standard configuration. Any specific requirements, please point out.
2. Working pressure in the middle layer ≤0.09Mpa, also, this can be adapted according to customers’ requirement.
3. The process parameters that need provided: the nature of material, working pressure, temperature, specific requirements, etc.

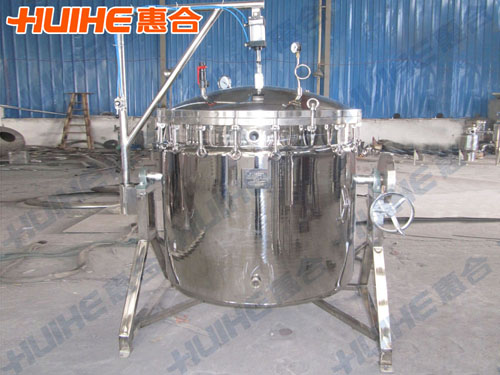

Tilting Cooking Pot Finished Picture
