Your are here: Home >> Products >>Sanitary Self Priming Pump
Sanitary self priming pump units are available for solids handling or clear liquid service. Typical mounting configurations are engine driven for skid or trailer mounted packages and frame mounted electric driven. Pumps also are available in a variety of different metallurgies.
Directory
- Classification of Sanitary Self Priming Pump
- Usages of Sanitary Self Priming Pump
- Characteristics of Sanitary Self Priming Pump
- Technical Parameters of Sanitary Self Priming Pump
- Sanitary Self Priming Pump Finished Picture
Classification of Sanitary Self Priming Pump
1. according to structure, it can be divided into three-foot pump and four-foot pump
2. according to material, there are SUS304 and SUS316L
3. according to motor species, it can be divided into ordinary motor, ABB motor and explosion-proof motor.
Usages of Sanitary Self Priming Pump
1. Municipal project, sewage project, instruction project.
2. Uptown,hospital, hotel sewage transportation.
3. Classification of municipal sewage factory treatment and concentrate system
engineering.
4. Factory and contaminated water delivery.
2. Uptown,hospital, hotel sewage transportation.
3. Classification of municipal sewage factory treatment and concentrate system
engineering.
4. Factory and contaminated water delivery.
Characteristics of Sanitary Self Priming Pump
1, The stainless steel pump body and the motor unit whole one, with stainless steel cover. Have the advantages of simple structure, beautiful shape, light volume, corrosion resistance, easy operation, no need installed base and convenient for handy carry.
2, the pump uses rigid structure and excessive thick wall design. All the parts such as pump body, pump cover and impeller that contacts with the material are made by SUS316L or SUS304 stainless steel. Mechanical shaft adopts high quality graphite, carbide silicon or hard alloy steel to produce. Greatly improving the wear resistance and prolong the using life.
Technical Parameters of Sanitary Self Priming Pump
|
Model |
Flow(m3/h) |
Height of extrusive liquid(m) |
Motor ower(Kw) |
|
BAW-1 |
1 |
9 |
0.37 |
|
BAW-3 |
3 |
18 |
0.75 |
|
BAW-5 |
5 |
24 |
1.5 |
|
BAW-10 |
10 |
24 |
2.2 |
|
BAW-15 |
15 |
32 |
3 |
|
BAW-20 |
20 |
36 |
4 |
Notes:
1. The parameters of stainless steel pump in diagram are standard configuration, any other requirements, please put forward.
2, the process parameters need provided: the material properties, flow, special requirements, etc.

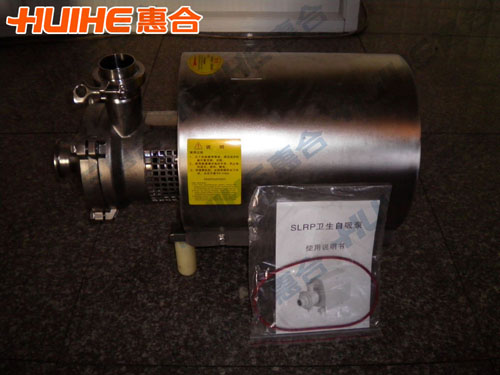

Sanitary Self Priming Pump Finished Picture
