Your are here: Home >> Products >>Vertical Diatomite Filter
Vertical diatomite filter contains of main machine,diatomite tank,transfusion pump,measurement pump.the main machine contains of the shuck,filter frame,compaction system etc. Filtering clarify degrees can up to 99.8%, the good operation even can filter out e. coli It also can filter out particles that below1-0.1 micron (including microbiological).
Directory
- Live Demonstration of Diatomite Filter
- Usages of Vertical Diatomite Filter
- Characteristics of Vertical Diatomite Filter
- Technical Parameters of Vertical Diatomite Filter
- Vertical Diatomite Filter Finished Picture

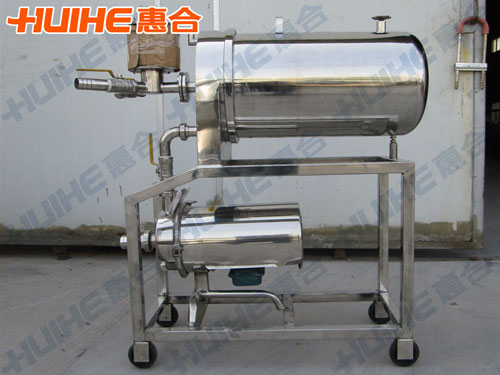

Live Demonstration of Diatomite Filter
Usages of Vertical Diatomite Filter
The vertical diatomite filter is widely used in beverage industry,sugar industry,seasoning,pharmaceutical industry,chemical product,and other products as gelatin,bone glue,seaweed rubber,vegetable,oil,starch and so on.
Characteristics of Vertical Diatomite Filter
1, Sealed cover,perpendicular filter vane,compact structure,few movable.
2, parts,convenient to maintenance.
3, Easy to operate disassembling is unnecessary when cleaning and discharging,low labor intensity.
4, Superior quality of corrosionproof,long-life for use.
5, Stable operation,reliable quality,effective filtering and excellent result.
6, High production efficiency and low energy consumption.
3, Easy to operate disassembling is unnecessary when cleaning and discharging,low labor intensity.
4, Superior quality of corrosionproof,long-life for use.
5, Stable operation,reliable quality,effective filtering and excellent result.
6, High production efficiency and low energy consumption.
Technical Parameters of Vertical Diatomite Filter
|
Model |
Body size
（㎜） |
Filter area （㎡） |
Filter sheet（piece ） |
Valve diameter |
Theoretical flow（ T/H ） |
Working pressure （Mpa ） |
Model of pump
（price plus） |
|
XSK500-A |
2450×750×850 |
15.9 |
38 |
Dg32 |
13-15 |
≤0.3 |
20T/H ,25m |
|
XSK500-B |
1950×750×850 |
8.5 |
20 |
Dg32 |
8-10 |
≤0.3 |
20T/H ,25m |
|
XSK400-A |
2350×680×800 |
9.8 |
38 |
Dg32 |
9-12 |
≤0.3 |
20T/H ,25m |
|
XSK400-Ⅰ |
1840×680×800 |
5.1 |
20 |
Dg32 |
6-8 |
≤0.3 |
10T/H ,25m |
|
XSK330-Ⅱ |
1700×600×750 |
3.4 |
20 |
Dg32 |
3-5 |
≤0.3 |
5T/H ,25m |
|
XSK330-Ⅲ |
1600×600×750 |
2.5 |
15 |
Dg32 |
2-4 |
≤0.3 |
5T/H ,25m |
|
XSK250 |
1100×350×450 |
2 |
20 |
Dg25 |
1-3 |
≤0.3 |
3T/H ,25m |
|
XSK220 |
950×300×420 |
1.1 |
15 |
Dg25 |
1-2 |
≤0.3 |
3T/H ,25m |
Notes:
1. The technical parameters of filter in the diagram are standard requirements, any special requirement, please point out.
2. The process parameters that need provided: the material properties, productivity, special requirements, etc.

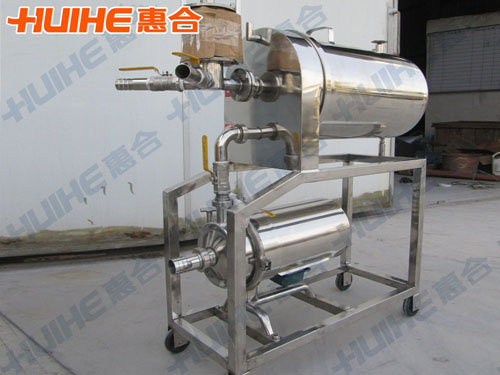

Vertical Diatomite Filter Finished Picture
